Rhino Rural Water Tanks - Blackwood Tanks Best Sellers!
These are absolutely our best selling tanks and are installed on a weekly basis for our rural clients.
Kingspan Rhino & Heritage rural water tanks are built tough with genuine Australian BlueScope ZINCALUME® steel and are available in the full range of COLORBOND® colours. Tanks range in size from 26,000 litres up to 365,000 litres. All tanks have a reinforced food grade 5-layer liner to keep your water fresh, making them ideal for rural and residential applications.
Established for over 25 years and backed by a 20 year conditional warranty, our water tanks are the ideal solution for your rainwater harvesting and bore water storage needs.
Product Information
All Kingspan Rhino water tanks are made with a corrugated profile for incredible wall strength and durability. Add to this a 250mm overlap at the joints and a 200mm double bolt spacing, and what you have is pure Rhino strength. With the 12mm bolts being hot-dipped galvanized, corrosion won’t stand a chance.
In order to ensure complete quality control, once manufactured, our tanks are then installed on site by our team of trained specialists. Tanks are manufactured as a kit and sent to site for installation.
Warranty
All Kingspan Rhino & Heritage Rural Tanks come with a 20 Year pro rata conditional warranty.

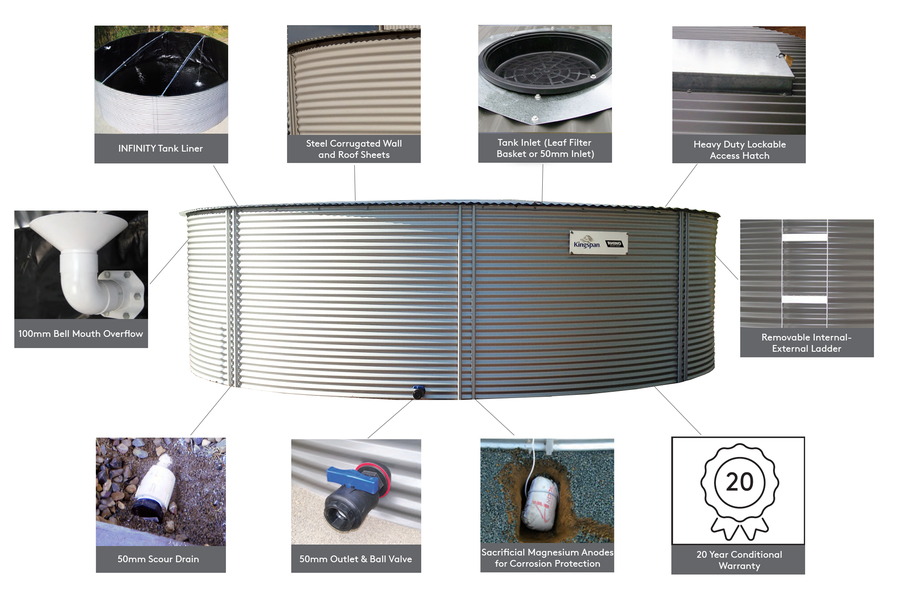

Quality Inclusions for Your Water Tank
Features List
| Included Features | Optional Features |
|---|---|
| INFINITY Tank Liner | Dust and vermin proofing seal |
| 100mm bell mouth overflow | Water level gauge |
| Steel corrugated wall and roof sheets | Additional outlets and valves (50mm/80mm/100mm) |
| Lockable access hatch | Additional inlets / leaf basket (50mm/80mm/100mm) |
| Tank inlet (leaf filter basket or 50mm inlet) | Fire fighting coupling (to meet state / territory regulations) |
| Removable internal/external ladder | Additional overflow |
| 1 x 50mm outlet and ball valve | |
| Magnesium anodes for corrosion protection | |
| 20 year conditional warranty | |
Reinforced Food Grade Kingspan Rhino INFINITY Liner
All Kingspan Rhino & Heritage tanks come with our tank liners and are made in the Kingspan factory in Western Australia for over 20 years. Our qualified liner fabricators use the latest welding techniques and state of the art machinery to produce liners of the very highest quality.
Liners have a state of the art food grade, UV treated, multi layered film called Metallocene, laminated to the existing reinforced polyethylene liner, giving extra layers of strength and durability. The development of this commercial strength liner demonstrates Kingspan’s commitment to innovation and consistently improving our products.
Installing Your Water Tank
Our tanks are manufactured as a kit and sent to site for installation by our experienced team. It is the customer’s responsibility to prepare a level pad of sand or crusher dust before installation can proceed. The pad needs to be 150mm deep at the specified diameter.
Kingspan Rhino provides detailed pad specifications to all customers to assist them in achieving an excellent quality pad. In some areas Kingspan can recommend contractors who have previously prepared quality pads for our tanks.
In some circumstances, your tank may need to be installed on a concrete ring beam, instead of sand or crusher dust.
Once the tank has been installed the customer is required to place an exclusion zone of a minimum of 20mm blue metal/coarse aggregate (no clay or concrete) around the base of the tank to prevent erosion and deter rodents from digging around the base.
Water Tank Sizes
| MODEL | DIAMETER | HEIGHT | LITRES | GALLONS | PAD SIZE | m3 BLUE METAL (20mm) REQUIRED AROUND TANK BASE |
|---|---|---|---|---|---|---|
| RT-25 | 3.88m | 2.2m | 26,067 | 5,734 | 5.9m | 0.8m3 |
| RT-40 | 4.85m | 2.2m | 40,720 | 8,959 | 6.9m | 0.8m3 |
| RT-60 | 5.83m | 2.2m | 58,651 | 12,902 | 7.8m | 1.0m3 |
| RT-80 | 6.80m | 2.2m | 79,831 | 17,560 | 8.8m | 1.0m3 |
| RT-100 | 7.77m | 2.2m | 104,269 | 22,936 | 9.8m | 1.2m3 |
| RT-130 | 8.74m | 2.2m | 131,966 | 29,028 | 10.8m | 1.2m3 |
| RT-160 | 9.71m | 2.2m | 162,921 | 35,838 | 11.8m | 1.6m3 |
| RT-200 | 10.68m | 2.2m | 197,134 | 43,363 | 12.7m | 1.6m3 |
| RT-230 | 11.65m | 2.2m | 234,606 | 51,606 | 13.7m | 2.0m3 |
| RT-275 | 12.62m | 2.2m | 275,336 | 60,565 | 14.7m | 2.1m3 |
| RT-310 | 11.65m | 2.9m | 309,253 | 68,026 | 13.7m | 2.0m3 |
| RT-365 | 12.62m | 2.9m | 362,943 | 79,836 | 14.7m | 2.1m3 |
For tanks larger than 365,000 litres, please contact us for specifications.
NOTE: Sizes listed are gross capacities. Effective capacities vary depending on the size and position of inlets and outlets.
